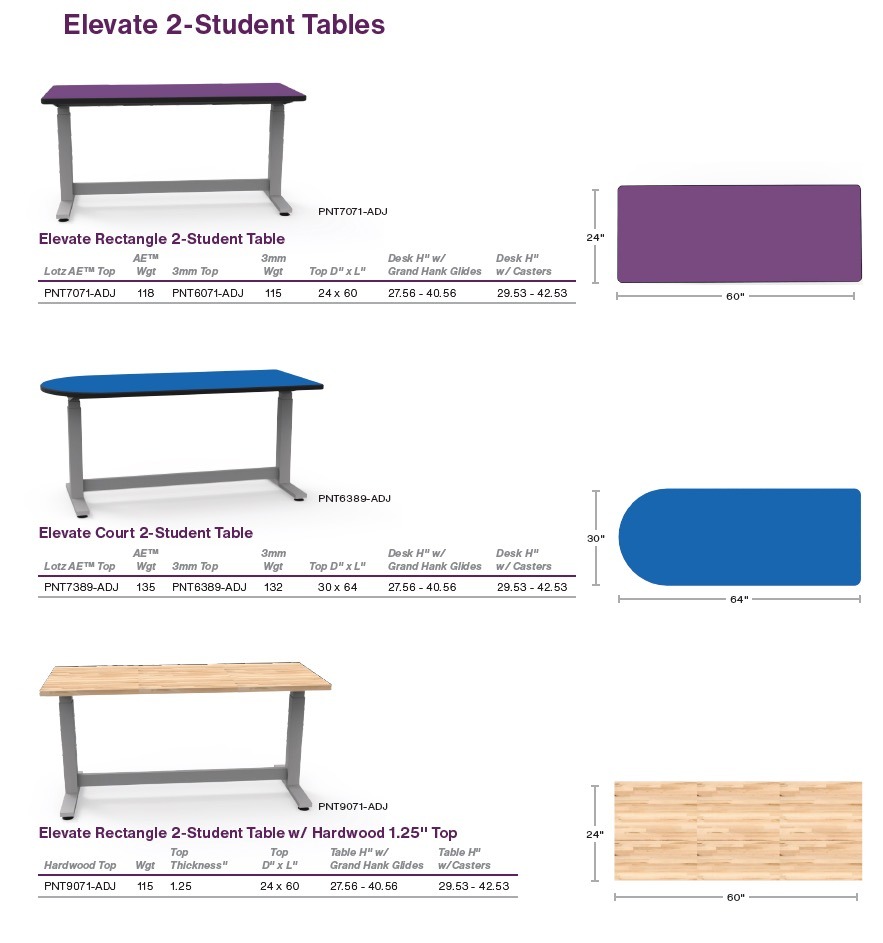

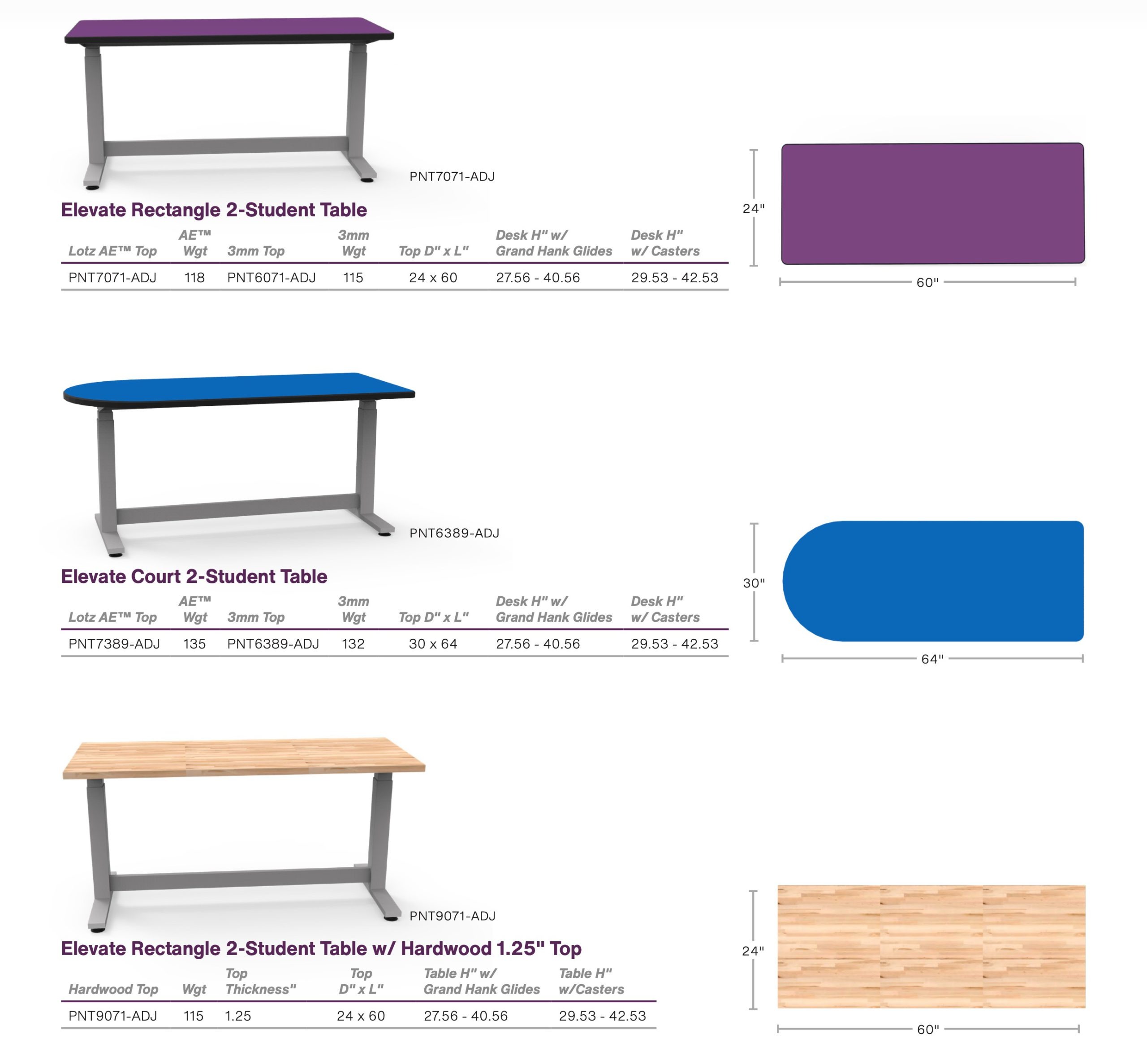

WB Elevate 2-Student Tables
Product Description
Base:
The Elevate table consist of two pneumatic columns.
The two pneumatic columns and the lower support bar are fully MIG welded together and the upper support bar is bolted to the column. The upper support bar is secured to the top with joint connector bolts into metal-to-metal threaded inserts.
The two 10-gauge bases are attached to the two pneumatic columns using cap bolts, washers and lock washers. There are two, 11-gauge support brackets that are bolted to the pneumatic column with joint connector bolts and also are secured to the top using the same bolts but going into metal-to-metal threaded inserts.
Table comes standard with four dual wheel locking casters AND four 2.5” Grand Hank Glides.
There is a plastic handle that attaches to the bottom of the top, 1” from the edge so it is easily accessible to adjust the table to different heights.
Finish:
Base only has a choice of a smooth silver finish.
